Sheet Metal Fabrication Parts: Prototype to Production in 15 Days – Is It Real?

“15 days? From drawing confirmation to receiving the first batch of production parts?” When many purchasing personnel hear about this cycle, their initial reaction is usually not anticipation but suspicion. They have seen it happen too often: everything goes smoothly during the prototype stage, but once the project moves into mass production, the lead time keeps extending due to process adjustments, supplier coordination, and quality verification. For sheet metal fabrication parts, the 15-day transition from prototype to mass production does not apply to all projects. However, for suppliers with a complete manufacturing system, it is achievable.

Why Do Most Sheet Metal Fabrication Parts Projects Fail to Deliver in 15 Days?

Many projects were delayed not because of slow processing, but because of three overlooked aspects.

♦  Manufacturing issues are not addressed during the design stage. How much springback will occur after bending? How much deformation will happen after welding? Are the required tolerances beyond the equipment’s actual capability? These are questions that should be answered during the drawing review stage.—DFM analysis for sheet metal parts. However, many projects only discover these problems after the first article is produced — resulting in rework, design adjustments, and production rescheduling that can easily cost several days.

♦ Waiting time exists throughout the production process. After cutting, there’s a wait for bending; after bending, there’s a wait for surface treatment – each external processing step is a scheduling game. The other factory may not prioritize your order, and it’s normal to wait two or three days.

♦ No validation before mass production. The first batch was put into mass production without confirmation. Problems were discovered during trial production, and the process had to be changed. Just get it running first, and this is often the main reason for the longest delays.

What Manufacturing Capabilities Are Required for 15‑Day Sheet Metal Parts Production?

What is the biggest problem in sheet metal fabrication? The biggest problem is that after cutting, you have to wait for bending. After bending, you have to wait for welding – because the factory lacks certain types of equipment and needs to outsource the work. Each time it is outsourced, it results in an uncontrollable delay.

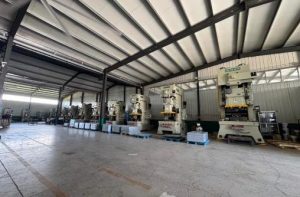

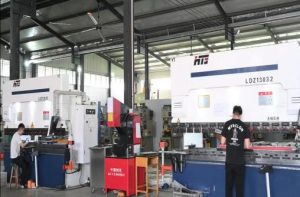

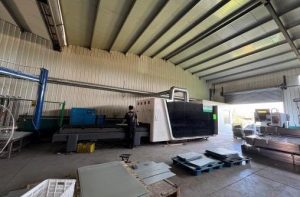

Complete internal manufacturing capabilities are an important foundation for shortening the delivery cycle. Our factory is equipped with

How Is 15‑Day Delivery Achieved from Drawings to Production?

15 days do not start from the first day of production – the truly efficient approach is: first do the right thing, then do it quickly.

How Does Fast Delivery Ensure Quality for Sheet Metal Parts?

Fast ≠ lower standards. As long as the quality control system keeps up, speed and precision can be achieved simultaneously.

Experienced suppliers typically use four inspection checkpoints to ensure quality:

•  Raw Material Inspection. Verify material grade, thickness, and lot consistency upon arrival. Thickness deviation and surface condition directly affect bending accuracy and welding quality. If this step fails, all         subsequent processing is meaningless.
•  First Article Inspection. The first piece of each production batch must undergo complete dimensional, assembly, and visual inspection. Production continues only after the first article passes; if it fails, the cause is immediately analyzed and the process adjusted.
•  In‑Process Inspection. Set up regular patrol checks during mass production, monitoring key parameters in real time to prevent finding problems only after the entire batch is finished.
•  Final Inspection. After production, perform sampling or 100% inspection covering critical dimensions, appearance, and functional performance. Only after everything is confirmed does the shipment go out, accompanied by a quality inspection report.

With an ISO 9001:2015 quality management system, every step from raw material to finished part is documented and traceable, ensuring every delivered product meets the requirements.

Which Projects Are Not Suitable for a 15‑Day Commitment?

15 days is not a one‑size‑fits‑all timeline. Professional suppliers will not promise 15‑day delivery for every project – that would be irresponsible and unrealistic.

The following cases do not fit the 15‑day window:

• New product designs.If the drawings are completely new and never validated before, they require more engineering evaluation and pilot runs. Forcing a tight schedule increases the risk of rework.
• Complex stamping with hard tooling. Projects that require steel‑stamping dies cannot compress the tool‑making lead time into 15 days. For tooling-based stamping projects, metal stamping cost and tool development time can significantly affect the delivery schedule.
• High‑precision medical or aerospace parts.  These parts demand stricter validation protocols and longer inspection times, with different delivery standards.
• Multi‑supplier collaboration.  If external processes (such as special heat treatment or third‑party testing) are involved, the delivery depends on external factors and cannot be precisely controlled.

Why Does Experience with 70,000+ Parts Help Shorten Lead Times?

The greatest value of extensive project experience is reducing trial‑and‑error.

A factory that has customized over 70,000 different sheet metal fabrication parts for 3,000+ enterprises in 100+ countries around the world implies the engineering team’s ability to handle complex problems:

• Which structures are prone to cracking during bending;
• Which material combinations cause noticeable distortion after welding;
• Which tolerance callouts are not controllable in mass production;
• Which surface treatment processes do not match the substrate.

The Essence of 15‑Day Delivery Is Manufacturing Certainty

Returning to the initial question: Is it really possible to go from prototype to mass production in just 15 days?

Yes – but only if the factory has the complete capability to carry it out.

When customers choose to collaborate with us, it is usually not because we have more equipment, but because during the design evaluation stage we can tell customers what problems this design might encounter during mass production, how to modify it to save time, and whether we can guarantee a 15-day delivery. If not, we will also explain the reasons.

The highest cost in cooperation is not the processing fee, but the rework and waiting caused by “thinking it could work but it didn’t”.
